Webhooks Setup Guide

Overview

Webhooks let eFICA notify your system in real time when key events occur — for example, when an application status changes or a document is uploaded.

This guide covers:

• Planning and implementing a receiver endpoint
• Verifying payload authenticity (HMAC-SHA256)
• Registering a subscription in eFICA
• Managing subscriptions and rotating secrets
• Handling retries and duplicate deliveries

---

Step 1 — Plan your endpoint

Your endpoint must be a publicly reachable HTTPS URL that your system controls, for example:

https://api.yourcompany.com/efica/webhooks

It must:

• Accept POST requests with a Content-Type: application/json body
• Respond with a 2xx status within 10 seconds
• Return the same 2xx for duplicates (idempotent processing)

Recommended pattern: acknowledge immediately with 200 OK, then process the payload asynchronously via a queue or background job. This keeps your response time well within the timeout and avoids failed deliveries caused by slow downstream processing.

---

Step 2 — Implement the receiver

A minimal receiver should:

1. Verify the signature before touching the payload (see Step 3)
2. Deduplicate using X-Efica-Event-Id as an idempotency key
3. Enqueue the payload for background processing
4. Return 200 OK immediately

If signature verification fails, return 401 and discard the request.

---

Step 3 — Verify the signature

Every delivery is signed with HMAC-SHA256 using your webhook secret. Always verify before processing.

Request headers

Header	Description
X-Efica-Signature	t=<unixSeconds>,v1=<hexHmac>
X-Efica-Event-Id	Unique identifier for this event
X-Efica-Event-Type	The event type string, e.g. entity.updated
User-Agent	efica-webhooks/2.0

Verification steps

1. Split X-Efica-Signature on , to extract t and v1.
2. Reject if t differs from current Unix time by more than 300 seconds — this prevents replay attacks.
3. Construct the signed string using the raw request body exactly as received:

signedPayload = "<t>.<rawBody>"

4. Compute HMAC-SHA256(secret, signedPayload) and hex-encode it.
5. Compare your result to v1 using a constant-time comparison.

Do not parse and re-serialise the JSON body before verifying — any whitespace difference will cause the check to fail. Always use the raw body bytes.

Example — Node.js

const crypto = require('crypto');

function verifyWebhook(secret, rawBody, signatureHeader) {
  const [tPart, v1Part] = signatureHeader.split(',');
  const t = tPart.replace('t=', '');
  const v1 = v1Part.replace('v1=', '');

  const ageSeconds = Math.abs(Date.now() / 1000 - Number(t));
  if (ageSeconds > 300) {
    throw new Error('Timestamp too old — possible replay attack');
  }

  const expected = crypto
    .createHmac('sha256', secret)
    .update(`${t}.${rawBody}`)
    .digest('hex');

  const valid = crypto.timingSafeEqual(
    Buffer.from(expected, 'hex'),
    Buffer.from(v1, 'hex')
  );

  if (!valid) throw new Error('Invalid signature');
}

---

Step 4 — Choose your event subscriptions

Subscribe only to the events your system needs to act on.

Individual

Event	Fires when
individual.created	A new FICA individual record is created
individual.updated	Any field on an individual record is updated

Entity

Event	Fires when
entity.created	A new FICA entity record is created
entity.updated	Any field on an entity record is updated
entity.document.created	A document is uploaded to an entity application
entity.document.deleted	A document is removed from an entity application
entity.trust.created	A trust is added to an entity organigram
entity.trust.updated	A trust record on an entity organigram is updated

UBO

Event	Fires when
ubo.created	A UBO (director, member, etc.) is added to an entity application
ubo.updated	A UBO record is updated
ubo.document.created	A document is uploaded for a UBO
ubo.document.deleted	A document is removed for a UBO

---

Step 5 — Register the subscription in eFICA

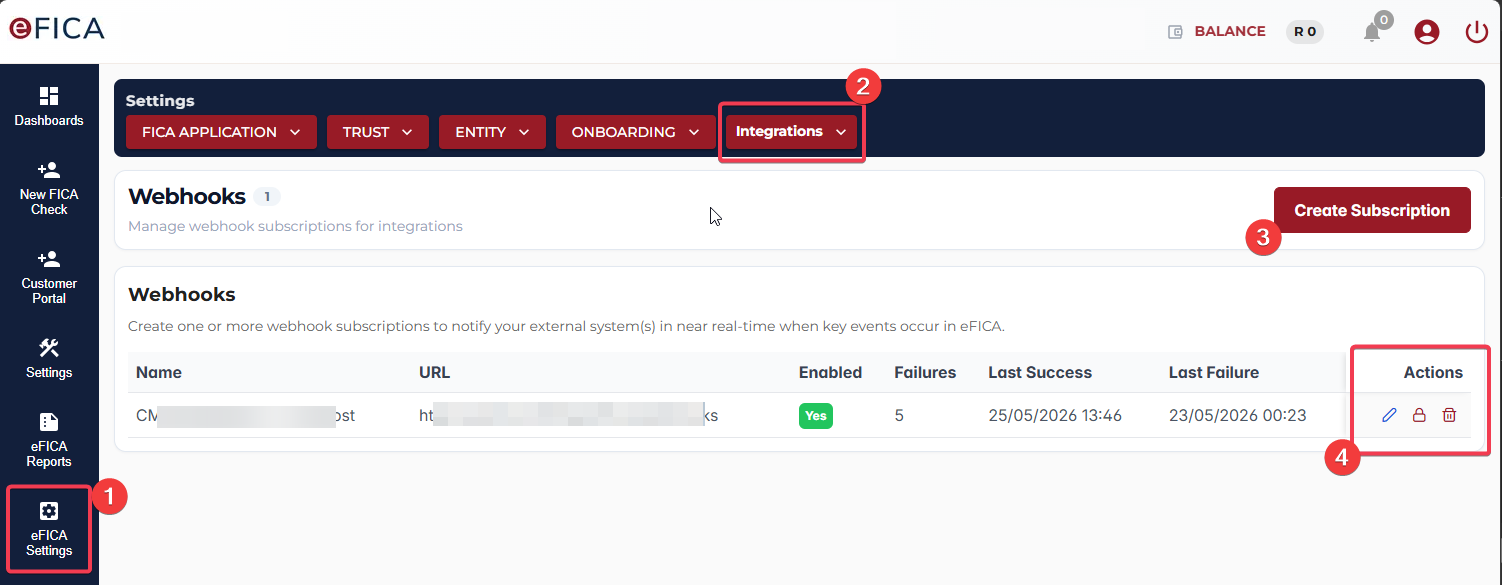

Step 1 — Open webhook settings

1. Click on eFICA Settings menu option.
2. Open the Integrations dropdown menu and select Webhooks.
3. Create a new subscription
4. Edit, rotate secrets and delete existing webhooks.

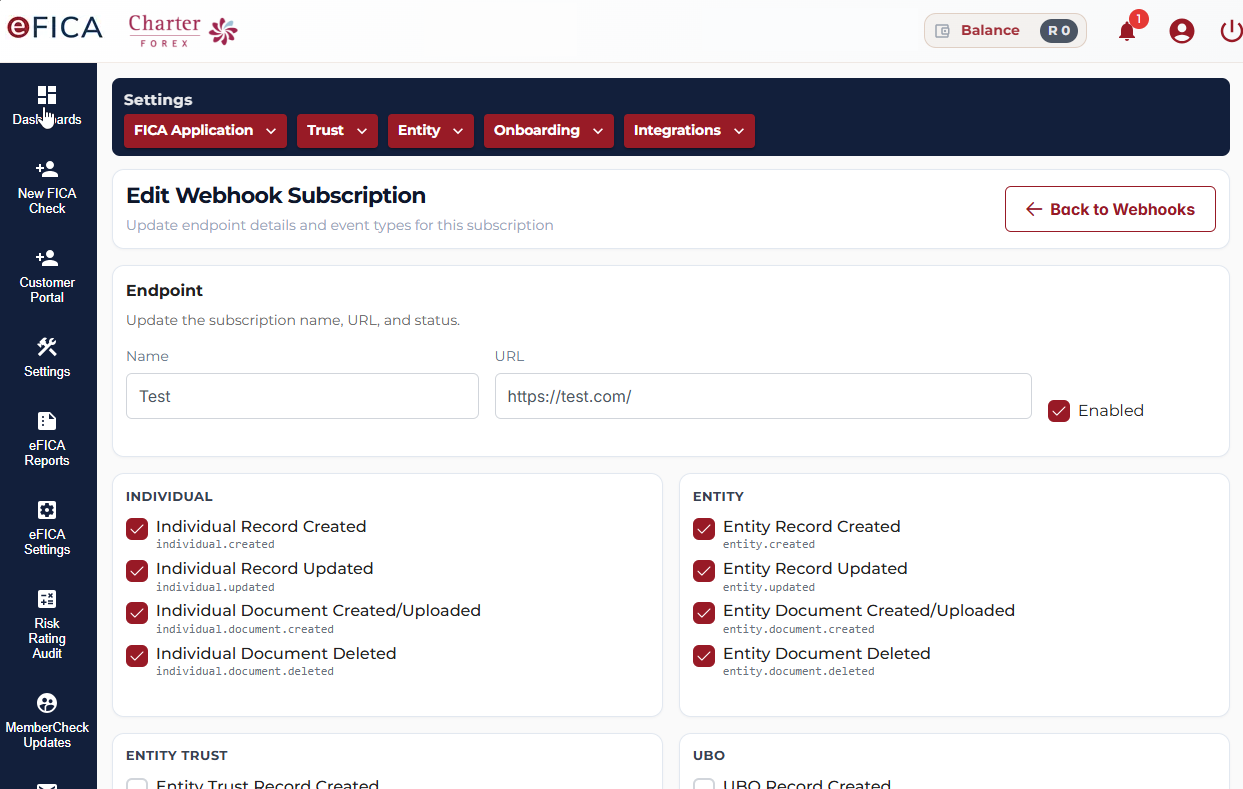

Step 2 — Create a subscription

Enter your endpoint URL, give the subscription a name, and select the event types you want to receive.

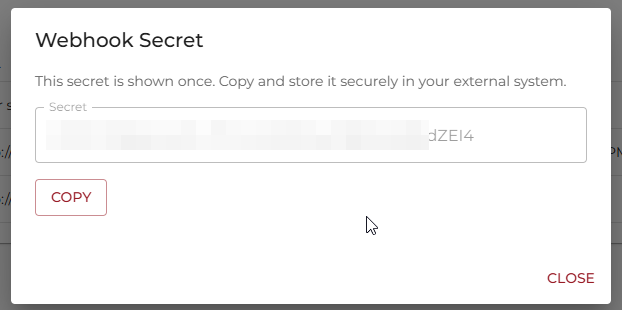

Step 3 — Save your secret

Your webhook secret is shown once only. Copy it immediately and store it securely — for example, as an environment variable or in your secrets manager. It cannot be retrieved again; if lost, you must rotate it.

---

Managing subscriptions

Once registered, each subscription can be managed from the webhooks dashboard:

Action	Description
Edit	Update the subscription name, endpoint URL, or selected event types
Rotate secret	Generate a new signing secret — all deliveries signed with the previous secret will immediately fail verification
Delete	Permanently removes the subscription and stops all deliveries — this cannot be undone

Before rotating a secret: update your receiver to use the new secret first, then rotate. Rotating before updating will cause delivery failures until your receiver is updated.

---

Retries and delivery guarantees

eFICA will retry delivery on any non-2xx response, connection timeout, or 5xx error.

Attempt	Delay
1	Immediate
2	1 minute
3	5 minutes
4	15 minutes
5	60 minutes
6	6 hours
7	24 hours

After 7 attempts the delivery is marked failed-final. Failed deliveries can be manually replayed from the eFICA dashboard.

Delivery is at-least-once — the same event may be delivered more than once during retries or manual replays. Always deduplicate on X-Efica-Event-Id.

---

Troubleshooting

Symptom	What to check
No webhook received	Endpoint is publicly reachable over HTTPS; firewall allows inbound POST; TLS certificate is valid
Signature verification fails	Raw request body is being used (not re-serialised); correct secret is configured; timestamp skew is within 5 minutes
Unexpected retries	Endpoint is returning 2xx within 10 seconds; processing is not blocking the response
Duplicate events	Deduplication logic is keying on X-Efica-Event-Id
Secret lost	Rotate the secret from the webhooks dashboard and update your receiver

Document history

Version	Date	Notes
1.0	2026-05-26	Initial release

Support

For technical support and questions:

• Email: melissa@efica.co.za
• Melissa will co-ordinate with the development team.

---

This documentation is maintained by the eFICA development team. For updates and corrections, please contact your account manager.

Last Updated: 26 May 2026
